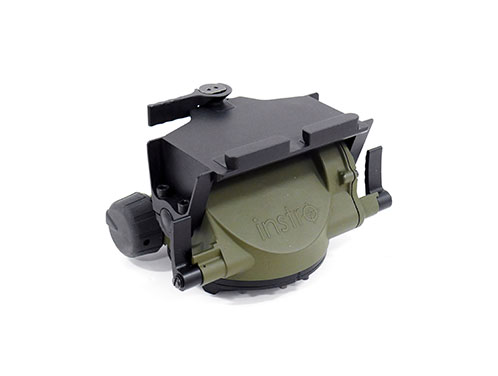

Mini Fine Adjust

Lightweight Pan & Tilt Fine Adjust Head

The Mini PTFA (Pan & Tilt Fine Adjust) family of manual pan and tilt heads has been designed for use in alignment critical applications and applications where it is necessary to accurately maintain the line of sight to moving objects.

The Mini PTFA lightweight pan & tilt head features axis damping and fine adjust mechanisms in both pan and tilt for maximum versatility. Axis damping allows the user much greater control when tracking moving objects and when initially aligning the mounted electro-optic sensor to a chosen object.

For small far distant objects, the fine adjust mechanism provides exceptional alignment precision and braking action. All versions feature a circular level bubble as an aid to deployment and elevation scale as standard.

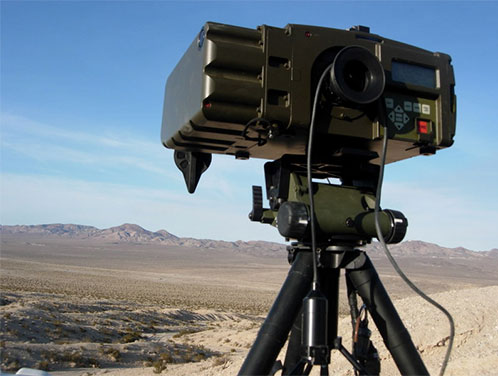

The Mini Pan and Tilt Fine Adjust head ideally pairs with Instro’s TriLite Tripods.

Main Advantages & Features

  • Rugged lightweight and compact design
  • Designed for ease and speed of deployment
  • Viscous damping
  • Fine adjust mechanism
  • Independent braking action

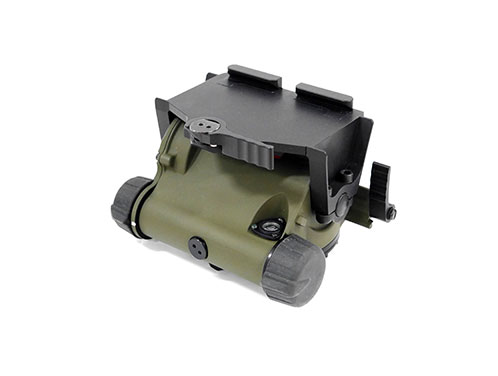

  • Circular level bubble to aid deployment
  • Elevation scale
  • Payload quick release mechanism
  • Standard 5/8” 11 UNC tripod mount
  • Full +/- 45° tilt range
  • Digital magnetic compass compatible
  • Environmentally sealed (IP67)
  • Three standard payload interface options available
  • Thermal / night vision equipment support
  • Multifunction binocular support
  • Laser rangefinder/designator support
  • Telescope and binocular support
  • Communications antenna support
  • Scientific instrument support
  • Generic interface adapters
  • Dual payload adapter
  • Carry bags
  •  Matching lightweight tripods
  • Custom adapter assemblies
  • Removable steering handle
  • Custom payload adapter assemblies
