Wasp

Medium Capacity High-Performance Motorised Pan and Tilt

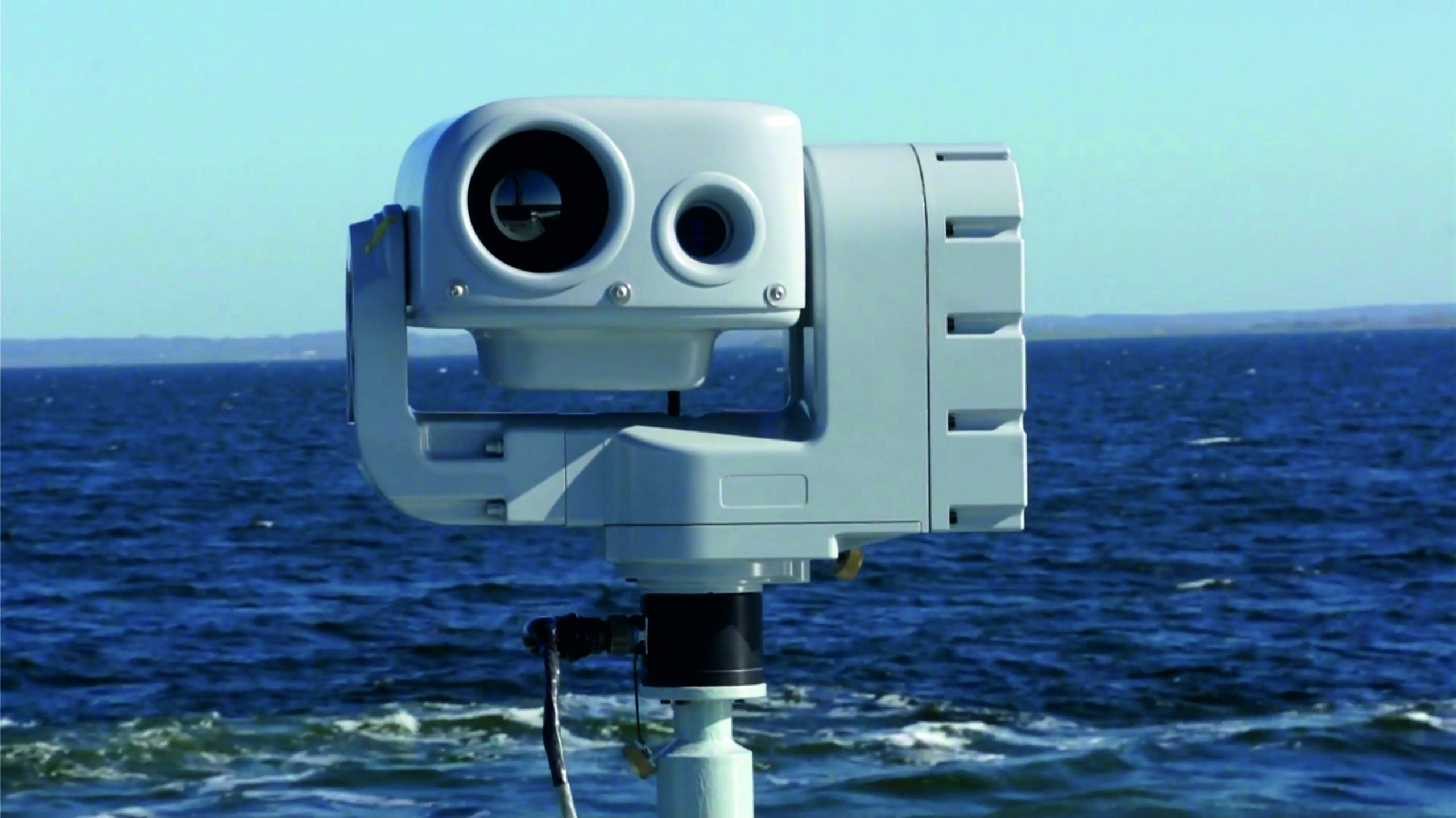

Wasp is Instro Precision’s high-performance medium capacity motorised pan and tilt.

The Wasp excels in homeland security applications and critical infrastructure protection in both fixed installations and light vehicle applications where a high degree of controllability and positional accuracy is required with good price/performance. With the addition of a tripod mount adapter, the Wasp is equally suited to ground deployment using a suitable tripod such as Instro’s Heavy Duty Tripod (HDT) or the Groundmaster providing rotational stability.

Configurations

Available in ‘U’ and compact ‘L’ shaped configurations with slipring available as standard, Wasp can be configured to handle an impressive range of sensors and sensor suites for medium to long-range surveillance tasks.

In the ‘U’ configuration the support arm, with optional spacers tailored to payload width, enables payload capacity to be increased, as well as balanced for better performance.

The capabilities of Wasp can be further extended with the addition of factory-configured options such as marinisation for coastal and seaborne operations, gyro stabilisation, automatic video tracking and digital image stabilisation.

Main Advantages & Features

  • Modular unit, adaptable to suit a wide range of payload configurations and mid/long range applications
    • Gyro stabilisation (option)
    • Auto tracking (option)
    • Marine environment (option)
  • Azimuth slipring as standard
  • Rugged compact design
  • Environmentally sealed (IP67)
  • Payload support for 1000Base-T Gigabit Ethernet
  • Ethernet / RS422 control
  • Precise speed control
  • High accuracy high axis speed (60°/s)
  • Highly resistant to shock and vibration
Download PDF

Features and Benefits

High accuracy

Rugged and compact design

Designed for mid / long range applications

Pan & Tilt

  • Fixed and mobile border surveillance
  • Coastal surveillance
  • Port and shipping control
  • Customs and coastguard applications
  • Vehicle mounted applications
  • Maritime applications
  • Security & perimeter defence
  • Auto tracking applications
  • Line of sight stabilisation
  • Gyro stabilisation
  • Automatic video tracker
  • Maritime environmental protection
  • Support arm spacers
  • Bespoke payload bracket design service
  • Customer specific paint colour

Accessories:

  • PC based control software and cables
  • Hardware controller with monitor and digital video recorder
  • Tripod mount adaptor
  • Matching tripod
  • Quick release payload adaptors
